Overview

With 20" wheels and a low step-through frame, this fat tire folding electric bike is compact, easy to mount, navigate through dense environments, easy to store, yet zippy enough for wide-open spaces. Fold it up for easy storage and transportation in your vehicle.

The 500 watt motor gives you lots of zip and assist. The mighty 48 volt / 16 amp hour (768 watt hours) gives you speed and up to 60+ miles of range.

Includes a sturdy black rear-rack with integrated rear brake and tail light. Or add a custom. colored rack of your choice.

The Peñalosa gets its name from two brothers – Gil and Enrique Peñalosa. As Mayor of Bogota, Columbia, Enrique has championed the message of Ciclovia - a weekly event where pedestrians and bicyclists take back the streets from cars - around the world.

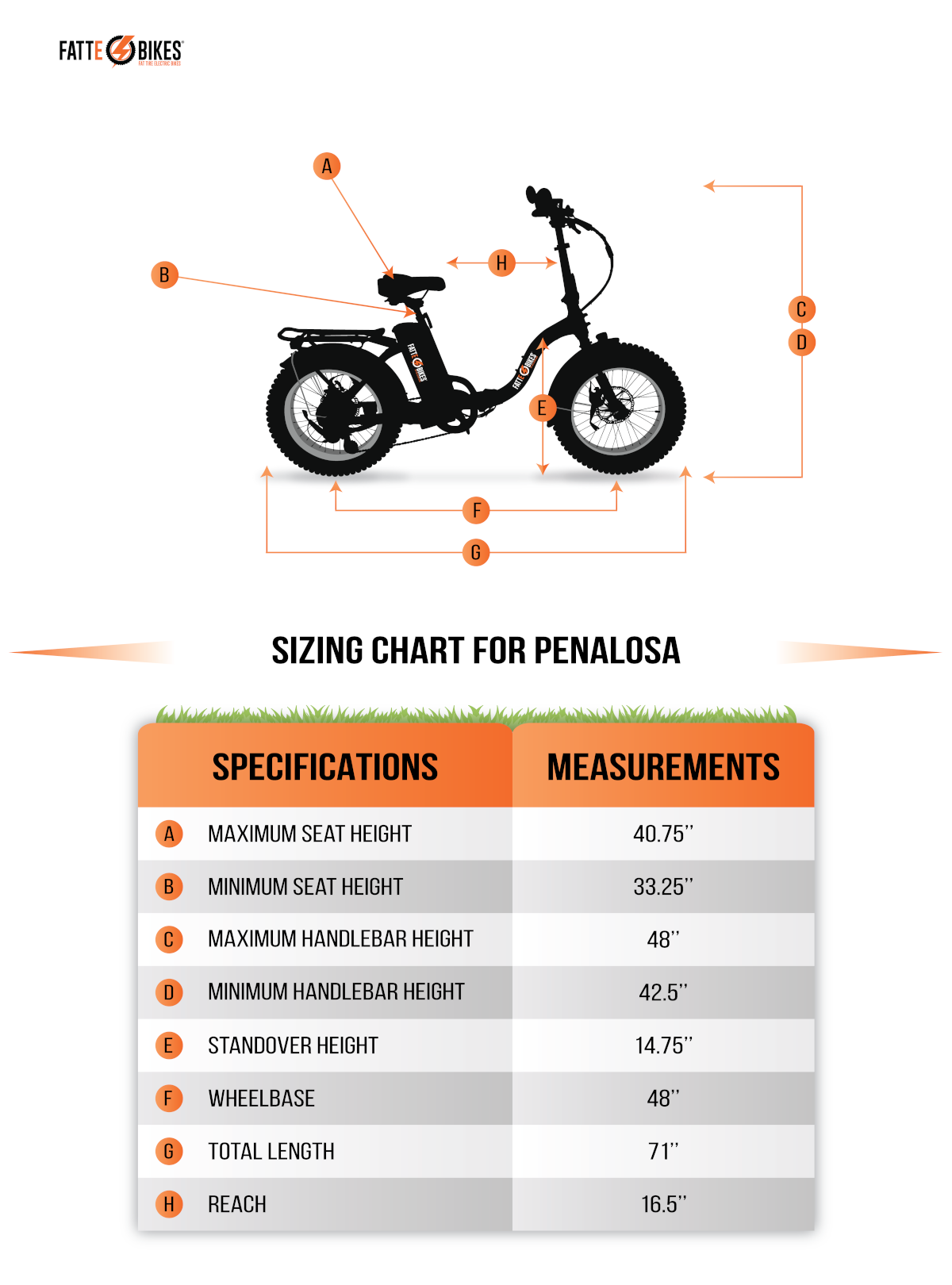

Measurements

Tech Specs

Classification

Class II or III Hybrid

Throttle

Comfortable ergonomic twist throttle w/ on/off button

Motor

Bafang 500W Brushless Rear hub motor

Charger

UL Certfied 48V 2Amp

Display

Multi-Function Color LCD display w/ Odometer/Tracker, Battery/Motor indicator, PAS control, & Lights control

Battery

Panasonic cell 48V, 16AH

Speed Sensor

12 magnets sensor, 5 Level PAS

Charging Time

4-6 hours (standard battery)

Shipping Weight

75 lbs

Net Weight

42 lbs without battery

Recharging Ability

600-800 full recharge cycles

Frame

Aluminum Alloy 6061T w/ bottle cage mounts

Shifter Gears

Shimano Altus 7 Speed w/ Derailleur protector

Front Brake

Tektro Aries Mechanical Disc Brake w/ integrated bell, brake levers, & motor cut-off switch.

Brake Rotors

180mm stainless steel

Rims

20inch X-tra durable, double-walled

Tire

20x4 Kenda Fat Tire (Optional) Mr. Tuffy puncture resistant liner w/ protective sealant

Fenders

Full size Aluminum

Spokes

12G*277mm Stainless Steel

Chain

KMC Z8.3 Chain

Chain guards

Double Wall Aluminum crank guard

Fork

Rigid fork with matching powder coat paint to frame

Kick Stand

Xtra thick wide base

Headlight

Single or Dual (optional) LCD-Controlled

Tailight

LCD-controlled w/ Brake Lights

Mirrors

Optional Mirrcycle round style mirrors in black

Pedals}

Wellgo Aluminum standard (Optional) Black Ops Premium colored metallic & neon options

Grips

Ergonomic faux leather black or brown

Seats

Large cushion black cruiser or (optional) criss cross faux leather brown cruiser

Crankset

46T chainring, 170 mm forged alloy cranks

Seatpost Folding

27.2 Folding Seatpost, 350mm long, Steel, 25mm offset

Handlebars

660mm wide Alloy handlebar with 25.4 clamp

You’ll Love

Smart Colored LCD display

This stylishly designed color LCD will give you the feel of a cockpit ready to take flight! All your control and information are right at your fingertips, with advanced real time-metrics including 5 levels of Pedals Assist, Trip distances, Odometer, Time, Battery power, Speed, Headlights, Taillights and more!

Long Range Batteries

Premium Panasonic or Samsung Cell industry leading long range batteries available in either 48V 16 amp/h or 48V 21amp/h. Includes USB charging port and LED power indicators. You’ll get from A to B and back again without having to worry about running out of power.

Smart Charger

Recharge, rest easy and ride on with your UL Certified smart charger. Available in our standard 2ah or high speed 4ah for reduced charging time. Including innovative protection functions such as over temperature protection, over charge protection and output / inrush current protection.

Adjustable Handlebars

Set your ride up for comfort with our fully adjustable handlebar stem. Whether you like cruising the streets in an upright position or leaning over in a more mountain bike position as you bomb it downhill - Our adjustable handlebar stem is super easy to adjust so you can position it to your desired height and setting.

Aluminum fenders and racks (not plastic)

No one likes riding through a puddle only to arrive at your destination wet and uncomfortable. Don’t get caught with a skunk back. Where most companies use cheap plastic fenders which are a pain to install and don’t often do their job or last very long, FattE-Bikes use high quality aluminum fenders and racks to ensure they last and perform as they should. Plus, you don’t have to settle for a plastic black fender since all our racks and fenders can be powder coat painted to the color of your choice.

Powder coat painting

There’s no need to settle for a paint job that won’t last when you can have a premium automotive grade “custom” paint job that’s not only more durable and will last longer, but also better for the planet. Most liquid paints contain high VOCs that are harmful to the environment whereas powder coat paint has no VOC’s. It’s a win win! Better for you and better for mother nature.

Shipping

Most ebikes companies send their bikes only 70-80% assembled, leading to hours of frustrations as you work to put them together. This also means that if you do it wrong, your bike won’t perform properly or you’ll just end up having to take it to a bike shop and spend a couple hundred dollars on having them do it for you. All in all, it’s not very fun.. However, our Fatte-Bikes ship 99-100% fully assembled meaning you're riding within minutes after unboxing your new bike. We use custom made boxes and packaging to ensure your bike is protected on its journey to you and arrives at your door the same way it left the shop. Simply wheel it out of the box and enjoy the ride!

Motor

With our 750-Watt rear hub motor (with 1000-watt max peak output) you’ll be able to get where you're going without ever breaking a sweat. Riding is effortless with these motors, yet its still all the fun of a bike. However, the power of this motor is capable of climbing hills just as easily as you’re used to riding downhill. No longer does distance or steep hills have to deter you from riding where you want, when you want.

Fat tires

When it comes to riding in comfort, riding on all terrain and riding year-round, nothing beats our 26”x4” fat tires. Knobby enough for traction on dirt, gravel, snow and more, yet smooth enough to carry you through the city streets. The beauty of the fat tire is that you can ride in comfort since extra air equals extra cushion. Plus, you can ride with confidence as you’ll have better traction and control so that potholes or patches of dirt are nothing to worry about.

Throttle

Don’t be fooled by a thumb throttle. Too many ebikes are coming with a thumb throttle that’s difficult to control and can quickly wear out your wrist. Your FattE-Bike will come equipped with a half twist throttle and a safety off switch. The twist throttle is a much more natural and controllable way to get some extra juice from your bike. Scooters and motorcycles use twist throttles (rather than thumb throttles) for a reason. Plus, with no off switch, other throttles can be hazardous if you accidentally engage them. But that’s not something you’ll have to worry about with your FattE-Bike. You’re in total control the whole time!

7- speed transmission

While most people will shift their FattE-Bike using their pedal assist, we’ve included a 7 speed shimano shifter for those who prefer to adjust their ride so they can make it as easy or challenging as they’d like. Unlike conventional bikes, it’s not necessary to adjust your gears very frequently on your ebike. However it never hurts to have as lowering or raising your gears can make a big difference in the effort you put out. That’s the beauty of it. You ride the way you want. Your FattE-Bike will do the rest!

Lights

Being seen is being safe and being able to see is pretty important too. Your FattE-Bike will come equipped with either a single or a dual headlight. One is nice, two is that much better! Your FattE-Bike will also come with an integrated tail light and brake lights. Both your front and rear lights are easily controlled using your LCD. It’s just a push of a button! Ergonomic Grips Ride in style with our faux leather ergonomic grips. Designed to adapt to the riders hands and more comfortable than a standard grip that can cause grip fatigue. Available in either black or brown.
