Description

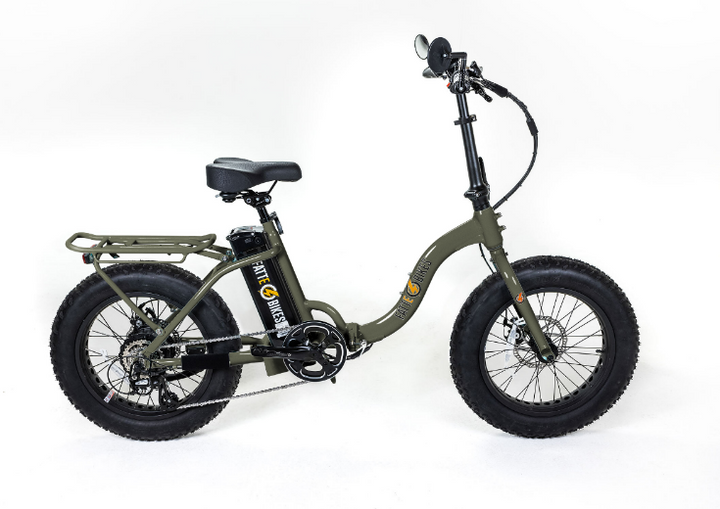

The Perfect Folding Electric Bike.
With 20" wheels and a low step-through frame, this fat tire folding electric bike is compact, easy to mount, navigate through dense environments, easy to store, yet durable enough for wide-open spaces. Fold it up for easy storage and transportation in your vehicle. The 500 watt motor gives you lots of zip and assist. The mighty 48 volt / 16 amp hour (768 watt hours) gives you speed and up to 60+ miles of range. Includes a sturdy rear-rack with integrated rear brake and tail light. The quality starts when we powder-coat finish your frame, fenders (optional) and rear rack. Your bike-smith then builds your bike with top e-bike components and the styling options you select.
The Peñalosa gets its name from two brothers – Gil and Enrique Peñalosa. As Mayor of Bogota, Columbia, Enrique has championed the message of Ciclovia - a weekly event where pedestrians and bicyclists take back the streets from cars - around the world.*
Higher Quality Built In The USA
*Please know that custom & quality take time. We hand build all our bikes, and are estimated to take 4-8 weeks from time of purchase to be shipped or ready for pickup.
Size & Fit
Specifications
| Classification | Class II or III Hybrid |
| Throttle | Comfortable ergonomic twist throttle w/ on/off button |
| Motor | Bafang 500W Brushless Rear hub motor |
| Charger |
UL Certified 48V 2Amp |
| Display | Multi-Function Color LCD display w/ Odometer/Tracker, Battery/Motor indicator, PAS control, & Lights control |
| Battery |
Panasonic cell 48V, 16AH or 21AH w/ integrated USB charging port |
| Speed Sensor | 12 magnets sensor, 5 Level PAS |
| Charging Time | 4-6 hours (standard battery) |
| Shipping Weight | 75 lbs |
| Net Weight | 42 lbs without battery |
| Recharging Ability | 600-800 full recharge cycles |
| Frame | Aluminum Alloy 6061T w/ bottle cage mounts |
| Shifter Gears |
Sunlight Single Speed Freewheel |
| Front Brake | Tektro Aries Mechanical Disc Brake w/ integrated bell, brake levers, & motor cut-off switch. |
| Brake Rotors | 180mm stainless steel |
| Rims | 20inch X-tra durable, double-walled |
| Tire | 20x4 Kenda Fat Tire |
| Fenders | Full size Aluminum |
| Spokes |
12G*277mm Stainless Steel |
| Chain | KMC Z8.3 Chain |
| Chain guards | Double Wall Aluminum crank guard |
| Forks/ Shocks | Rigid Aluminum Front Fork |
| Kick Stand | Xtra thick wide base |
| Headlight |
Single or Dual (optional) LCD-Controlled |
| Tailight | LCD-controlled w/ Brake Lights |
| Mirrors | Optional Moto style mirrors in various colors |
| Pedals | Wellgo Aluminum foldable |
| Grips | Ergonomic faux leather black or brown |
| Seats | Velo black or brown standard (Optional) Large cushion black cruiser or criss cross faux leather brown cruiser |
| Crankset | 46T chainring, 170 mm forged alloy cranks |
| Seatpost Rigid | 27.2 Rigid 300mm long alloy seatpost, 25mm offset |
| Dropper Seatpost | Not Available |
| Handlebars | Straight Edge: 700mm wide alloy handlebar with 31.8 clamp Swept back: 640mm wide alloy handlebar with 31.8 clamp |
Features
Smart Colored LCD Display
This stylishly designed color lcd will give you the feel of a cockpit ready to take flight! All your control and information are right at your fingertips, with advanced real time metrics including 5 levels of pedals assist, trip distances, odometer, time, battery power, speed, headlights, taillights and more!
Long Range Batteries
Premium panasonic or samsung cell industry leading long range batteries available in either 48v 16 amp/h or 48v 21amp/h. Includes usb charging port and led power indicators. You’ll get from a to b and back again without having to worry about running out of power.
Smart Charger
Recharge, rest easy and ride on with your ul certified smart charger. Available in our standard 2ah or high speed 4ah for reduced charging time. Including innovative protection functions such as over temperature protection, overcharge protection and output/inrush current protection.
Adjustable Handlebars
Set your ride up for comfort with our fully adjustable handlebar stem. Whether you like cruising the streets in an upright position or leaning over in a more mountain bike position as you bomb it downhill. Our adjustable handlebar stem is super easy to adjust so you can set it to your desired settings.
Aluminum Fenders & Racks (Not Plastic)
No one likes riding through a puddle only to arrive at your destination wet and uncomfortable. Don’t get caught with a skunk back. Where most companies use cheap plastic fenders which are a pain to install and don't often do their job or last very long, fatte-bikes use high quality aluminum fenders and racks to ensure they last and perform to your expectations.
Powder Coat Painting
There’s no need to settle for a paint job that won’t last when you can have a premium automotive grade “custom” paint job that’s not only more durable and will last longer, but also better for the planet. Most liquid paints contain high vocs that are harmful to the environment whereas powder coat paint has no vocs. It's a win win!
