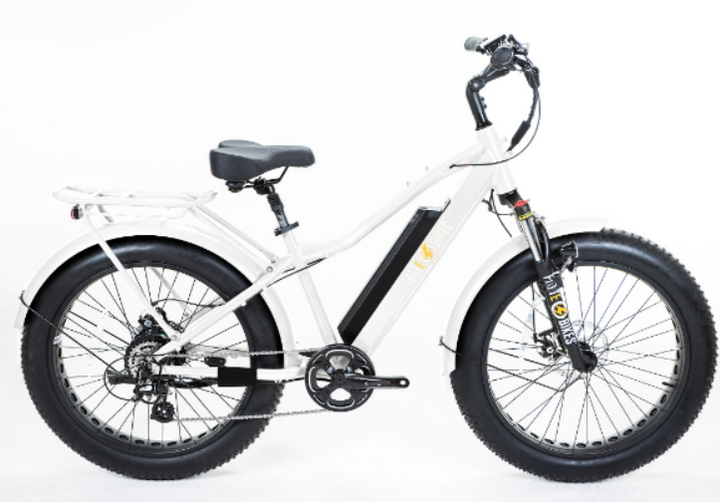

Sgt. Mingo - Mountain



With a sturdy, mountain bike style hybrid frame, this ‘go anywhere, do anything’ model gives you performance, fun, and looking for an excuse to go ride! This ebike has a powerful 750 watt motor, and an industry leading 48 volt / 16 AH battery (768 watt hours) for long range adventures from the mountains to the urban streets and everything in between. Option to upgrade to a 21 AH (1008 watt-hours) battery for up to 80+ miles of range. Includes premium Tektro hydraulic brakes,  custom DUAL headlights, and sturdy rear-rack with integrated rear brake and tail light. The quality starts when we powder-coat finish your frame, fenders (optional) and rear rack. Your bike-smith then builds your bike with top e-bike components and the styling options you select.

The Sgt. Mingo model is named after one of the leaders of the US Army’s 25th Infantry Bicycle Corps. The first regiment equipped with bicycles, the 25th was also one of the first African-American military units. In 1897 Sgt. Mingo led his unit on a grueling 1,900 mile trek entirely on bicycles from Missoula, Montana to St. Louis Missouri. As first sergeant he was considered the motivator and inspiration of the group.*

Higher Quality Built In The USA

*Please know that custom & quality take time.  We hand build all our bikes, and are estimated to take 4-8 weeks from time of purchase to be shipped or ready for pickup.

Size & Fit
Classification Class II or III Hybrid
Throttle Comfortable ergonomic twist throttle w/ on/off button
Motor Bafang 750W Brushless Rear hub motor

UL Certified 48V 2Amp

Display Multi-Function Color LCD display w/ Odometer/Tracker, Battery/Motor indicator, PAS control, & Lights control

Panasonic cell 48V, 16AH or 21AH w/ integrated USB charging port

Speed Sensor 12 magnets sensor, 5 Level PAS
Charging Time 4-6 hours (standard battery)
Shipping Weight 90 lbs
Net Weight 55 lbs without battery
Recharging Ability 600-800 full recharge cycles
Frame Aluminum Alloy 6061T w/ bottle cage mounts
Shifter Gears

Shimano Altus 7 Speed w/ Derailleur protector

Front Brake Tektro Aries Mechanical Disc Brake w/ integrated bell, brake levers, & motor cut-off switch. (Optional) Tektro Hydraulic Brakes
Brake Rotors 180mm stainless steel
Rims 26inch X-tra durable, double-walled
Tire 26x4 Kenda Fat Tire (Optional) Mr. Tuffy puncture resistant liner w/ protective sealant
Fenders Full size Aluminum

12G*277mm Stainless Steel

Chain KMC Z8.3 Chain
Chain guards Double Wall Aluminum crank guard
Forks/ Shocks Front Suspension w/ rebound & lockout
Kick Stand Xtra thick wide base

Single or Dual (optional) LCD-Controlled

Tailight LCD-controlled w/ Brake Lights
Mirrors Optional Moto style mirrors in various colors
Pedals Wellgo Aluminum standard (Optional) Black Ops Premium colored metallic & neon options
Grips Ergonomic faux leather black or brown
Seats Velo black or brown standard (Optional) Large cushion black cruiser or criss cross faux leather brown cruiser
Crankset 46T chainring, 170 mm forged alloy cranks
Seatpost Suspension 27.2 Suspension Seatpost 350mm long, Alloy, 35mm of travel, 25mm offset
Seatpost Rigid 27.2 Rigid 300mm long alloy seatpost, 25mm offset
Dropper Seatpost 27.2 KS E20i Dropper Post, 390mm long, 100mm Travel, Zero offset with KS Southpaw Lever
Stem Promax 110mm 90° Adjustable Stem
Handlebars Straight Edge: 700mm wide alloy handlebar with 31.8 clamp Swept back: 640mm wide alloy handlebar with 31.8 clamp


Custom Dual Headlights

A FattE exclusive double headlight system means you'll never be left in the dark again! Super bright double LED lights with integrated push button system to instantly brighten up your night.

Premium Hydraulic Brakes

Many brands offer cheap knock off 'hydraulic' brakes. Our Tektro brand are premium higher quality hydraulics for a higher end performance experience, with smooth-like-butter braking capabilities.

Long Range Batteries

Premium panasonic or samsung cell industry leading long range batteries available in either 48v 16 amp/h or 48v 21amp/h. Includes usb charging port and led power indicators. You’ll get from a to b and back again without having to worry about running out of power.

Smart Colored LCD Display

This stylishly designed color lcd will give you the feel of a cockpit ready to take flight! All your control and information are right at your fingertips, with advanced real time metrics including 5 levels of pedals assist, trip distances, odometer, time, battery power, speed, headlights, taillights and more!

Smart Charger

Recharge, rest easy and ride on with your ul certified smart charger. Available in our standard 2ah or high speed 4ah for reduced charging time. Including innovative protection functions such as over temperature protection, overcharge protection and output/inrush current protection.

Adjustable Handlebars

Set your ride up for comfort with our fully adjustable handlebar stem. Whether you like cruising the streets in an upright position or leaning over in a more mountain bike position as you bomb it downhill. Our adjustable handlebar stem is super easy to adjust so you can set it to your desired settings.

Aluminum Fenders & Racks (Not Plastic)

No one likes riding through a puddle only to arrive at your destination wet and uncomfortable. Don’t get caught with a skunk back. Where most companies use cheap plastic fenders which are a pain to install and don't often do their job or last very long, fatte-bikes use high quality aluminum fenders and racks to ensure they last and perform to your expectations.

Powder Coat Painting

There’s no need to settle for a paint job that won’t last when you can have a premium automotive grade “custom” paint job that’s not only more durable and will last longer, but also better for the planet. Most liquid paints contain high vocs that are harmful to the environment whereas powder coat paint has no vocs. It's a win win!
